Featured image (diagram)

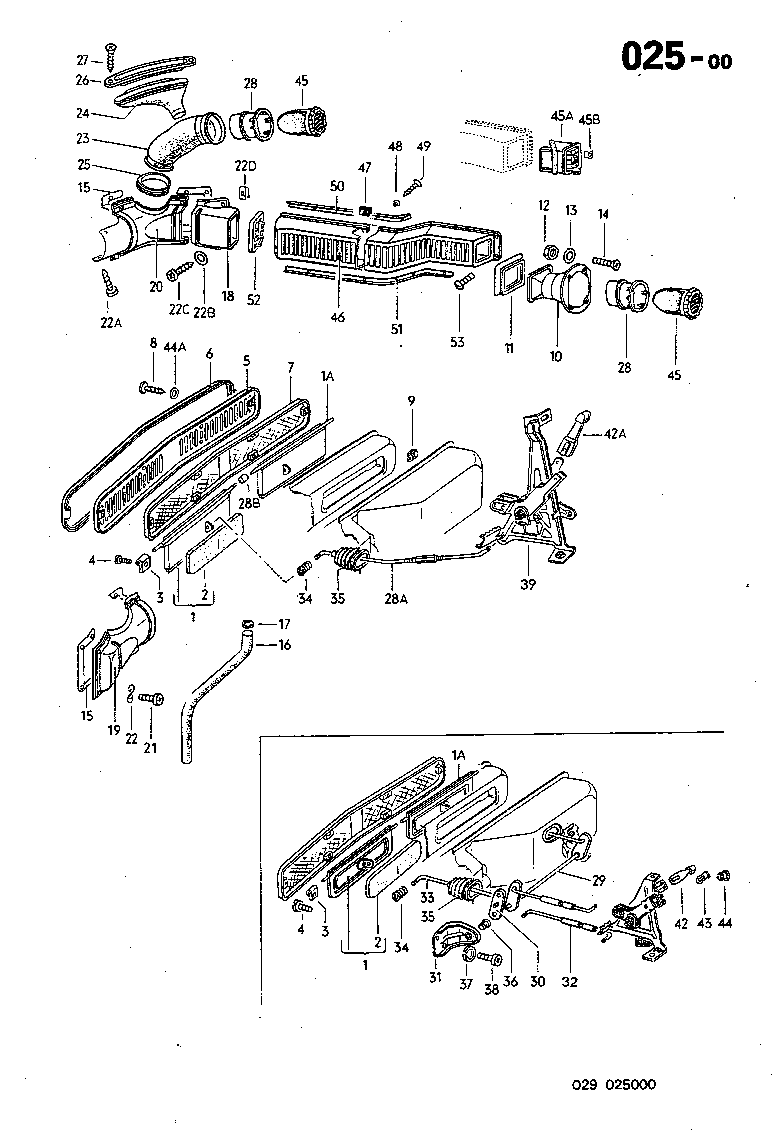

025-00 Fresh Air Controls
025-00 Fresh Air Controls
Pick part (variant)
1 - Fresh Air Flap Left, ‘68-‘77 (up to 138 000) 1 - Fresh Air Flap Left, ‘77 (from 138 001) - '79 1A - Fresh Air Flap, Right, ‘68-‘77 (up to 138 000) 1A - Fresh Air Flap, Right, ‘77 (from 138 001) - '79 2 03 - Mount, Fresh Air Flap (Uses 4) 04 - Screw, Fill. HD M6X12 (Uses 4) 5 - Air Intake Trim Plate '68 - '72 5 - Air Intake Trim Plate '73 - '79 6 - Trim Frame - Air Intake Trim Plate '68 - 72 7 - Grille - Air Intake '68 - '79 8 10 - Air Duct to Passenger Compartment '68 - '76 11 - Gasket, Air Duct ‘68-‘76 12 - Nut, HEX, BM 5 13 14 15 - Gasket, Air Duct Cover '68 - 79 16 - Water Drain Hose '68 - 72 16 - Water Drain Hose '73 17 18 - Duct, Right 18 - Duct, Left 19 - Cover - Duct, Left w/o Door Duct 19 - Cover - Air Duct, Left w/ Door Duct 20 - Cover - Air Duct, Right w/ door Duct 20 - Cover - Air Duct, Right w/o Door Duct 21 22 22A 22B 22C 22D 23 - Fresh Air Distributor, Left 1968-1979 23 - Fresh Air Distributor, Right 1968-1979 24 - Fresh Air Vent, Left 1968-1979 24 - Fresh Air Vent, Right 1968-1979 25 - Gasket - Fresh Air Distributor '68-'79 26 - Cover, Fresh Air Vent 1968-1979 27 - Tapp Screw, CSK, Raised HD B 4. 2X16 27 - Tapp Screw, CSK, Raised HD B 4. 8X16 28- Pipe Connection - Fresh Air Outlet '68 - '76 28A - Rod - Fresh Air Flap (LHD) ‘77 (from 138 001) -‘79 28B - Connecting Piece '77 (from 138 001) up to '79 29 - Lever - Fresh Air Flap (LHD) '73 - '79 30 - Lever - Fresh Air Flap (LHD) '68 - '72 31 - Mounting '69 - '77 (up to 138 000) 32 - Connecting Rod, Adjustable 1968-1972 32 - Connecting Rod '73 to '77 (up to 138 000) 33 - Rod, Fresh Air Flap '68 - '72 33 - Rod, Fresh Air Flap '73 - '77 (up to 138 000) 34 - Spring, Fresh Air, Heating Controls 35 - Seal - Rod '68 - '79 36 - Bush - Lever Mounting '69 - '77 (up to 138 000) 37 38 39 - Fresh Air and Heat Control '68 - '72 39 - Fresh Air and Heat Control ‘73 - '77 (up to 138 000) 39 - Fresh Air and Heat Control '77 - '79 40 41 42A - Fresh Air Regulator (BLUE) ‘74-‘79 42A - Lever Fresh Air Regulator (RED) ‘74-‘79 42 - Lever, Blue, Fresh Air and Fresh Air Regulator, ‘68-‘73 42 - Lever, Red, Heat, ‘68-‘73 43 - Leaf Spring, Lever ‘68-72 44 - NEW Plug, Lever ‘68-‘72 (Set of 2) 44A 45 - Outlet - Fresh Air 45A - Outlet - Fresh Air '77 - '79 45B - Clip For Fresh Air Outlet '77 - '79 46- Air Duct, Cab Door, Left ‘68-‘76 46- Air Duct, Cab Door, Right ‘68-‘76 47 48 49 50 - Retaining Strip Upper for Air Duct, Left '68 - '79 50 - Retaining Strip Upper For Air Duct, Right '68 - '79 51 - Retaining Strip Lower for Air Duct, Left '68 - '79 51 - Retaining Strip Lower for Air Duct, Right '68 - '79 52 - Gasket Front - Air Duct 18 '68 - '79 53
