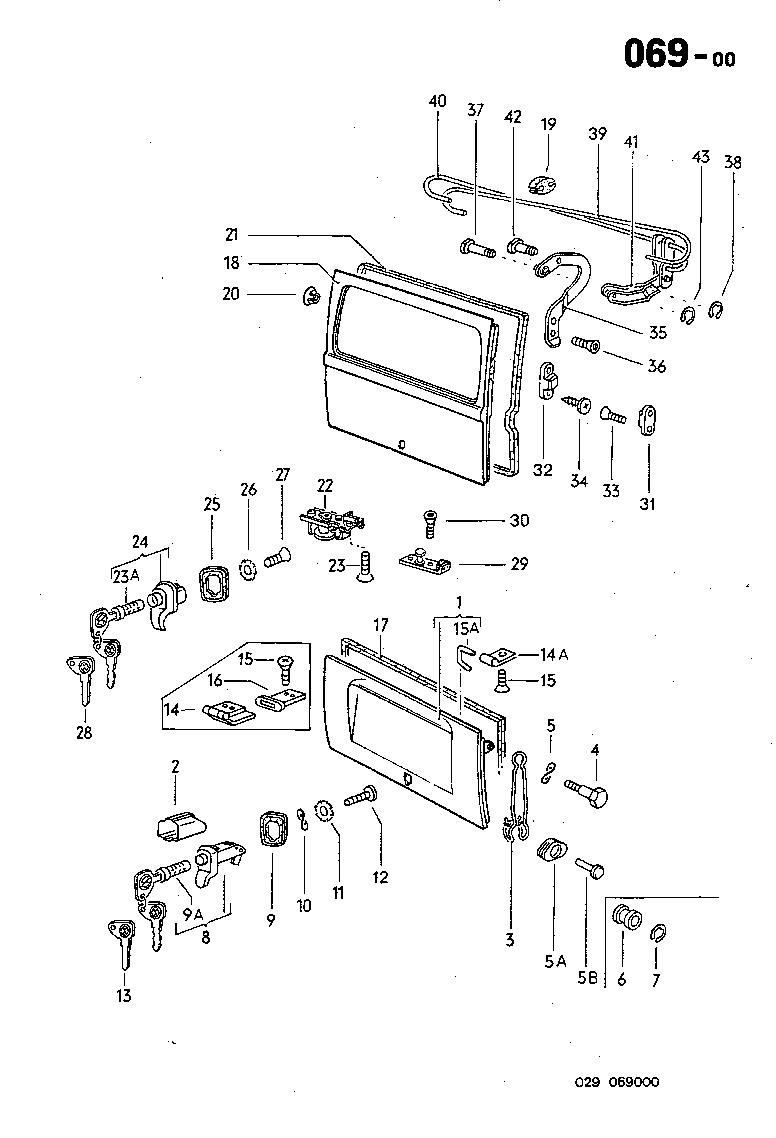

069-00 Rear Hatch, Engine Lid
Pick part (variant)
Select Part Number 1 - Engine Compartment Lid ‘68-‘71 1 - Engine Compartment Lid ‘72-‘79 2 - Cap, Inner Engine Lid Lock ‘72-‘79 3 - Spring, Engine Lid Support, ‘72-‘79, Original 3 - Spring, Engine Lid Support, ‘68-‘71, Original 4 - Bolt, Hex Head for Spring, Original OEM 5 - Spring Washer, B10 Guide Roller 5A - Guide Roller For Spring ‘74-‘79, Original OEM 5B - Rivet, AK 4.8X14.5 ‘mid’74-‘79 6 - New Guide Roller for Spring ‘68-mid’74 (SET) 7 - New Lock Washer 5 (SET) 8 - Lock, Engine Compartment Lid non-lockable ‘68-’71 8 - Lock, Engine Compartment Lid, LOCKABLE WITH Key ‘68-‘71 8 - Lock, Engine Compartment Lid, (LOCKABLE ) WITHOUT Key ‘68-‘71 8 - Lock, Engine Compartment, non-lockable ‘72-‘79 8 - Lock, Engine Compartment Lid, Chrome, LOCKABLE WITH Key ‘72-‘79 8 - Lock, Engine Compartment Lid, Chrome, LOCKABLE WITHOUT Key ‘72-‘7 9 - Packing - Engine Compartment Lid Lock 9A - Lock Cylinder with Keys (Profile R) FA. Witte '71 - '79 10 - Spring Washer 11 - Lock Washer A 5.3 12 - Screw. Fill. HD. M 5X10 13 - Key Blank 14 - New Hinge for Engine Lid ‘68-‘76 (SET) OEM Quality 14A - Hinge For Engine Lid, ‘77-‘79 15 - Screw, CSK, HD AM 6X15 15A - Hinge Pin, Left ‘77-‘79 15A - Hinge Pin, Right ‘77-‘79 16 - New Seal for Engine Lid Hinge ‘68-‘76 17 - Seal Engine Lid, USA, '68 - '71 17 - New Seal Engine Lid, USA ‘72-‘79 18 - Rear Panel Lid ‘68-‘71 18 - Rear Panel Lid ‘72-‘79 19 - Distance Piece (Rubber) for Torsion Bar 20 - Cap, Inner on Rear Panel Lid 21 - New Seal for Rear Panel Lid, German, '68 - '71 21 - New Seal for Rear Panel Lid, German,, ‘72-‘79 22 - Lock for Rear Panel Lid, ‘68-‘71 22 - Lock for Rear Panel Lid ‘72-‘79 23 - Screw CSK HD AM 6X15 23A - Lock Cylinder with Keys (Profile L), '68 - '70 23A - Lock Cylinder with Keys (Profile R), '71 - '79 24 - HANDLE, LOCKABLE FOR REAR PANEL LID ‘72-‘79 24 - HANDLE, LOCKABLE FOR REAR PANEL LID ‘68-‘71 25 - Packing Handle '68 - '71 25 - Packing Handle '72 - '79 26 - Lock Washer A 5.3 26 - Lock Ring B 5 27 - Screw. Cheese HD. AM 5X10 27 - Screw HD M5X10 28 - Key Blank 29 - Striker Plate, Rear Panel Lid ‘68-‘71 29 - Striker Plate, Rear Panel Lid ‘72-‘79 30 - Screw CSK HD AM 6X12 ‘68-‘71 30 - Screw. CSK. Raised HD. M 8X22 for Striker Plateâ '72 - '79 31 - Adjustment Plate - Guide Piece '68 - '71 (up to 168 836) 32 - Guide Piece for Rear Panel Lid, '68 - '71 (up to 168 836) 33 - Screw. CSK. HD, AM5X10, '68 - '71 (up to 168 836) 34 - Tapp. Screw. CSK. Raised HD. B 4.8X13 '68 - '71 (up to 168 836) 35 - Hinge, Left Rear Door, ‘68-‘71 35 - Hinge, Rear Door, Right, ‘68-‘71 35 - Hinge, Rear Door, Right, ‘72-‘79 35 - Hinge, Rear Door, Left, ‘72-‘79 36 - Screw CSK Raised HD M8X22 37 - Pin - Hinge 38 - Circlip #6 39 - Torsion Bar, Left for Rear Panel Lid 40 - Torsion Bar,Right for Rear Panel Lid 41 - Hinge Stay, ‘68-‘72 L or R 41 - Hinge Stay, ‘73-‘79 L or R 42 - Bolt for Hinge Stay ‘68-‘71 42 - Bolt for Hinge Stay ‘72-‘79 43 - Circlip 6
